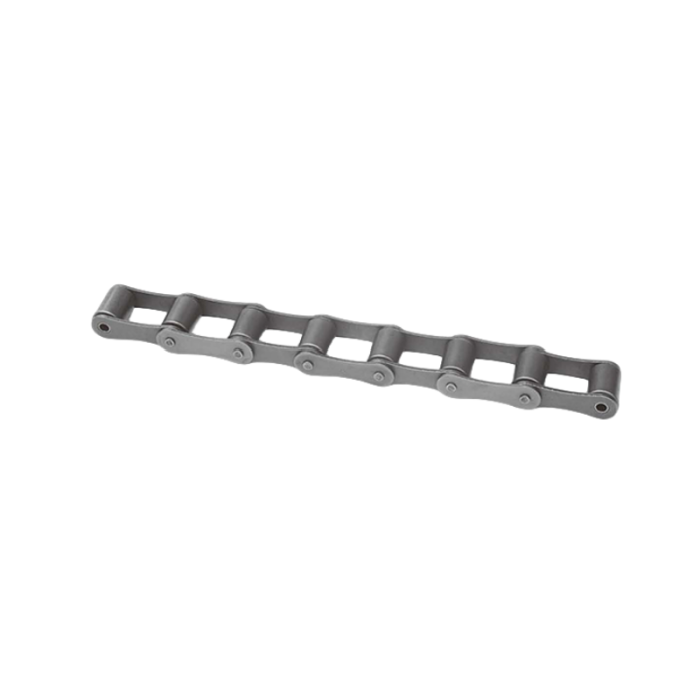

S77 Roller Chain | S-Type Steel Agricultural Chain
S77 Roller Chain | S-Type Steel Agricultural Chain
The S77 agricultural chain is a durable, high-performance chain designed for agricultural applications.
| Material | 45Mn |
|---|---|
| Color | Natural |
| Surface Treatment | Shot Peening/Heat Treatment/Plating/Lubrication |
| Accuracy | High precision agricultural chain |
| Quality | Durable agricultural chain |
| Interchangeability | Directly interchangeable with other brands |
Detail Information
About S77 Agricultural Chain
The S77 steel agricultural chain is a high-strength chain manufactured according to DIN 8189 standards, It is widely used in European agricultural machinery such as harvesters, balers, and conveyors. Made from high-quality steel, the S77 roller chain features solid rollers, heat-treated components, and a pre-stretched design to minimize elongation and enhance durability. We offer various chain attachments for your application.
If you need any help, please contact us. CTS® is here to support you every step of the way.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
Features
- Precision Machined Components
- Low Friction
- Directly interchangeable with other brands
- Uniform Heat Treatment
S77 Agricultural Chain Dimension
S77 Agricultural Chain Dimensions
- Chain pitch(p): 58.34 mm
- Roller diameter(d1 max): 18.26 mm
- Width between inner plates(b1 min): 22.23 mm
- Pin diameter(d2 max): 8.90 mm
- Pin length(L max): 43.2 mm
- Pin length(Lc max): 46.4 mm
- Plate dimension(h2 max): 26.2 mm
- Plate dimension(T max): 4.0 mm
- Tensile strength: 45.00/10227 kN/lbf
- Weight per meter: 2.66 kg/m
