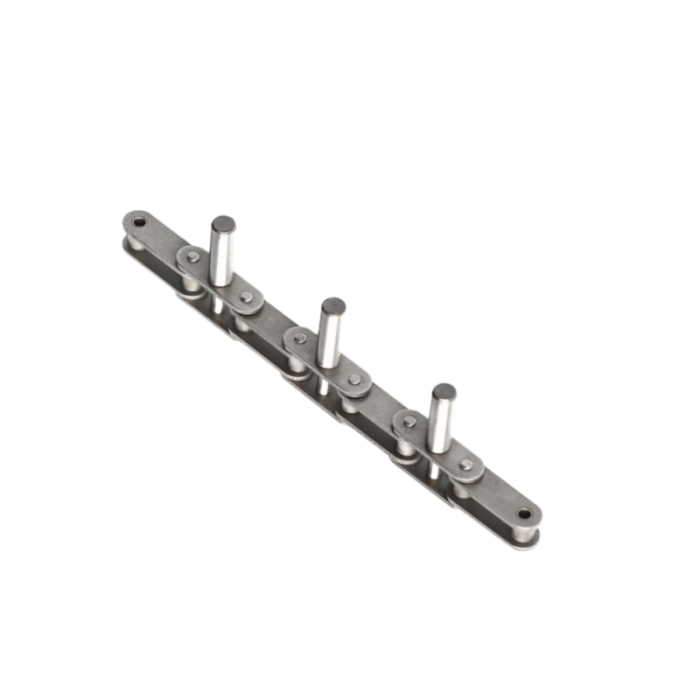

C212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch Chain

C212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch Chain
C212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch ChainC212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch Chain

C212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch Chain

ANSI C2060 Double Pitch Conveyor chains are usually used for conveyor systems, packaging machinery,and agricultural machinery.
Material40Mn
ColorNatural
QualityDurable conveyor chain
InterchangeabilityDirectly interchangeable with other brands
Contact Now
Favorites
Detail Information

Double Pitch Conveyor Chain

Double pitch conveyor chain is a specialized variant designed for applications requiring extended spans, slower speeds, and moderate loads. Double pitch conveyor chains are commonly utilized in material handling equipment, packaging machinery, and assembly lines, its simple construction facilitates easy maintenance and replacement. Trust CTS® double pitch conveyor chains for efficient, reliable, and economical conveying solutions in industrial environments.

For a quotation or other information on double pitch conveyor chains, please contact us, and we will be happy to help you.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

  • Precision Machined Components
  • Low Friction
  • Directly interchangeable with other brands
  • Uniform Heat Treatment

Double Pitch Conveyor Chain Dimension


Double Pitch Conveyor Chains
Double Pitch Conveyor Chains Dimension Chart
   ISO
Chain No.		ANSI
Chain No		PitchRoller
diameter		Width
between
inner plates		Pin
diameter		Pin
length		Inner
plate
depth		Plate
thickness		Tensile
strength		Average
tensile
strength		Weight
per
meter
Pd1
max		b1
min		d2
max		  L
max		Lc
max		h2
max		T
max		Q
min		Q0q
m mm mm mm mm mm mm mm mkN/IbfkNkg/m
C208AC204025.40 7.95 7.85 3.96 16.6 17.8 12.0 1.50 14.1/320516.7 0.50
C208B25.40 8.51 7.75 4.45 16.7 18.2 11.8 1.60 18.0/409119.4 0.55
C210AC205031.75 10.16 9.40 5.08 20.7 22.2 15.0 2.03 22.2/504528.1 0.78
C210B31.75 10.16 9.65 5.08 19.5 20.9 14.7 1.70 22.4/503624.6 0.75
C212AC206038.10 11.91 12.57 5.94 25.9 27.7 18.0 2.42 31.8/722736.8 1.12
C212B38.10 12.07 11.68 5.72 22.5 24.2 16.0 1.85 29.0/651931.9 0.90
C216AC208050.80 15.88 15.75 7.92 32.7 36.5 24.0 3.25 56.7/1288665.7 2.08
C216B50.80 15.88 17.028.2836.1 39.1 21.0 4.15/3.1060.0/1348966.0 2.14
C220AC210063.50 19.0518.99.5340.444.730488.5/20114102.63.01
C220B63.50 19.0519.5610.1941.34526.44.50/3.5095.0/21357104.52.93
C224AC212076.222.2325.2211.150.354.335.74.80127.0/28864147.34.66
C224B76.225.4025.4014.6363.457.833.26.00/4.80160.0/359691765.17
C232AC2160101.6028.5831.7514.2764.869.647.86.40226.8/51545278.98.15
