Transmission Roller Chain 10A-1/50-1 Short Pitch Roller Chain

Transmission Roller Chain 10A-1/50-1 Short Pitch Roller Chain
Transmission Roller Chain 10A-1/50-1 Short Pitch Roller ChainTransmission Roller Chain 10A-1/50-1 Short Pitch Roller ChainTransmission Roller Chain 10A-1/50-1 Short Pitch Roller ChainTransmission Roller Chain 10A-1/50-1 Short Pitch Roller ChainTransmission Roller Chain 10A-1/50-1 Short Pitch Roller Chain

Transmission Roller Chain 10A-1/50-1 Short Pitch Roller Chain

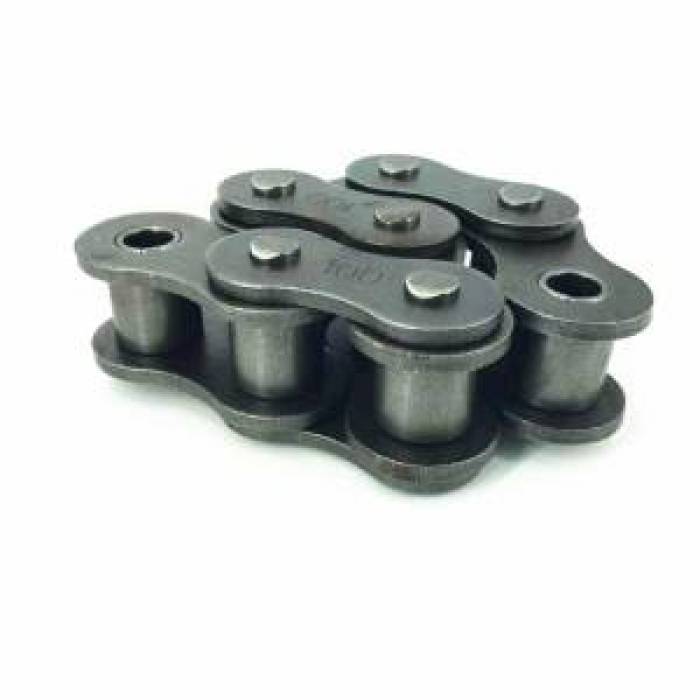

ANSI #50 Roller chains are efficient transmission component for power and motion transfer in industrial machinery.
Material45MN
ColorNatural
Surface TreatmentShot Peening/Heat Treatment/Plating/Lubrication
Surface TreatmentHigh precision roller chain
QualityDurable roller chain
InterchangeabilityDirectly interchangeable with other brands
Contact Now
Favorites
Detail Information

Roller chain 10A-1/50-1 Short Pitch Roller Chain

CTS® #50 Roller Chain

Our #50 roller chains adhere to ANSI B29.1 Standards, ensuring complete interchangeability with other ANSI-certified roller chains and proper operation on #50 chain sprockets. Crafted with precision, our roller chains feature high-quality heat-treated, shot-peened, and hardened components, complemented by a factory-applied premium lubricant for optimal performance.


CTS® high-quality ANSI #50 simplex roller chains are built to keep your machine running!

For quotation or other information on ANSI roller chains, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Short pitch transmission Chains Specifications


#50 Roller Chain Dimensions


  • Pitch(P): 15.8750 mm
  • Roller diameter(d1): 10.16 mm
  • Width between inner plates(b1): 9.40 mm
  • Pin diameter(d2): 5.08 mm
  • Pin length(L): 20.70 mm
  • Pin length(Lc): 22.20 mm
  • Inner plate depth(h2): 15.09 mm
  • Plate thickness(T): 2.03 mm
  • Tensile strength: 22.20/5045 kN/lbf
  • Weight per meter: 1.02 kg/m
ANSI #50 Simplex Roller Chain dimension chart
ANSI Simplex Roller Chain
ANSI Simplex Roller Chain Dimension Chart
Chain SizePitchRoller diameterWidth between innner platesPin diameterPin lengthInner plate depthPlate thicknessAverage tensile strengthWeight per meter
Pd1
max		b1
min		d2
max		L
max		Lc
max		h2
max		T
max		Q0q
mmmmmmmmmmmmmmmmkNkg/m
154.7625 2.48 2.38 1.62 6.10 6.904.30 0.60 2.0 0.08
*256.3500 3.30 3.18 2.31 7.90 8.406.00 0.80 5.0 0.15
*359.5250 5.08 4.77 3.58 12.40 13.17 9.00 1.30 11.3 0.33
4112.7000 7.77 6.25 3.58 13.75 15.00 9.91 1.30 12.6 0.41
4012.7000 7.95 7.85 3.96 16.60 17.80 12.00 1.50 18.6 0.62
5015.8750 10.16 9.40 5.08 20.70 22.20 15.09 2.03 31.3 1.02
6019.0500 11.91 12.57 5.94 25.90 27.70 18.00 2.42 43.2 1.50
8025.4000 15.88 15.75 7.92 32.70 35.00 24.00 3.25 74.3 2.60
10031.7500 19.05 18.90 9.53 40.40 44.70 30.00 4.00 107.6 3.91
12038.1000 22.23 25.22 11.10 50.30 54.30 35.70 4.80 163.1 5.62
14044.4500 25.40 25.22 12.70 54.40 59.00 41.00 5.60 222.5 7.50
16050.8000 28.58 31.55 14.27 64.80 69.60 47.80 6.40 266.9 10.10
18057.1500 35.71 35.48 17.46 72.80 78.60 53.60 7.20 361.1 13.45
20063.5000 39.68 37.85 19.85 80.30 87.20 60.00 8.00 466.8 16.15
24076.2000 47.60 47.35 23.81 95.50 103.00 72.39 9.50 671.6 23.20
