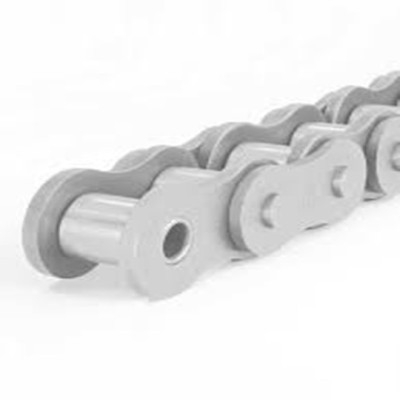

Hot Sale Flexible S type steel agricultural chains ss316 Conveyor Chains with Extended Pin for Various Uses From China
Hot Sale Flexible S type steel agricultural chains ss316 Conveyor Chains with Extended Pin for Various Uses From China
These S type steel agricultural chains can easily be bored to a metric or standard size to fit your application.
| Model | S52LV-S88 |
|---|---|
| Material | Stainless Steel |
Detail Information
No. S52LV/S55/S55R/S55RH/S55RHF1/S62/S62F10/S62F5/S62F8/S62R/S77/S88 Dimensions
S Type Steel Agriculture Chains Specifications
Chain No. |
Pitch
(mm) |
Roller diameter (mm) | Width between inner plates (mm) | Pin diameter (mm) | Pin length L max (mm) | Pin length Lc max (mm) | Inner plate depth (mm) |
Plate thickness
(mm) |
Tensile strength kN/lbf | Average tensile strength kN |
Weight per meter
(kg/m) |
S52LV | 38.10 | 15.88 | 17.80 | 6.94 | 33.8 | 37.0 | 16.7 | 3.0 | 30/6618 | 32.5 | 1.58 |
S55 | 41.40 | 17.78 | 22.23 | 5.72 | 37.7 | 40.4 | 17.3 | 2.8 | 18/4091 | 36.1 | 1.80 |
S55R | 41.40 | 17.78 | 22.23 | 8.90 | 41.0 | 44.0 | 22.4 | 3.5 | 45/10227 | 73.1 | 2.49 |
S55RH | 41.40 | 17.78 | 22.23 | 8.90 | 43.2 | 46.4 | 22.4 | 4.0 | 65/14772 | 84.5 | 2.74 |
S55RHF1 | 41.40 | 25.00 | 22.23 | 8.90 | 43.2 | 46.4 | 22.4 | 4.0 | 65/14772 | 84.5 | 2.74 |
S62 | 41.91 | 19.05 | 26.20 | 5.72 | 40.3 | 43.0 | 17.3 | 2.5 | 26.7/6067 | 36.1 | 1.87 |
S62F10 | 41.91 | 19.05 | 25.40 | 5.72 | 39.4 | 42.2 | 17.3 | 2.5 | 26.7/6067 | 36.1 | 2.04 |
S62F5 | 41.91 | 19.05 | 26.20 | 5.72 | 40.3 | 43.0 | 16.7 | 2.5 | 26.7/6067 | 36.1 | 2.07 |
S62F8 | 41.91 | 19.05 | 27.90 | 10.00 | 44.9 | 49.3 | 25.0 | 3.0 | 45/10227 | 60.0 | 2.96 |
S62R | 41.91 | 19.05 | 25.80 | 8.50 | 41.9 | 44.6 | 20.1 | 2.8 | 42/9546 | 45.0 | 2.43 |
S77 | 58.34 | 18.26 | 22.23 | 8.90 | 43.2 | 46.4 | 26.2 | 4.0 | 45/10227 | 73.1 | 2.66 |
S88 | 66.27 | 22.86 | 28.58 | 8.90 | 49.8 | 53.0 | 26.2 | 4.0 | 45/10227 | 73.1 | 3.25 |
Product Information
Hot Sale Flexible S type steel agricultural chains
The high quality S type steel agricultural chains are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Made from the steel and the up-to-date skills as well as precision procedures, the flexible S type steel agricultural chains can withstand strong pressure and high temperature.
Availability:
* Standard chains
* Customized chains
Quality Assurance:
ISO9001: 2015 and
GB/T24001-2016 / ISO14001: 2015.
High quality:
√Corrosion resistance
√Durable, Robust and
Reliable
√Bad condition
resistance
√Lower weight--high
speed
Services:
√Surface treatment
√Hardened teeth
√Serious quality control
Application industries:
√Manufacturing
√Agriculture
√Building Material
√Oil and Gas
√Technology and Science
……
