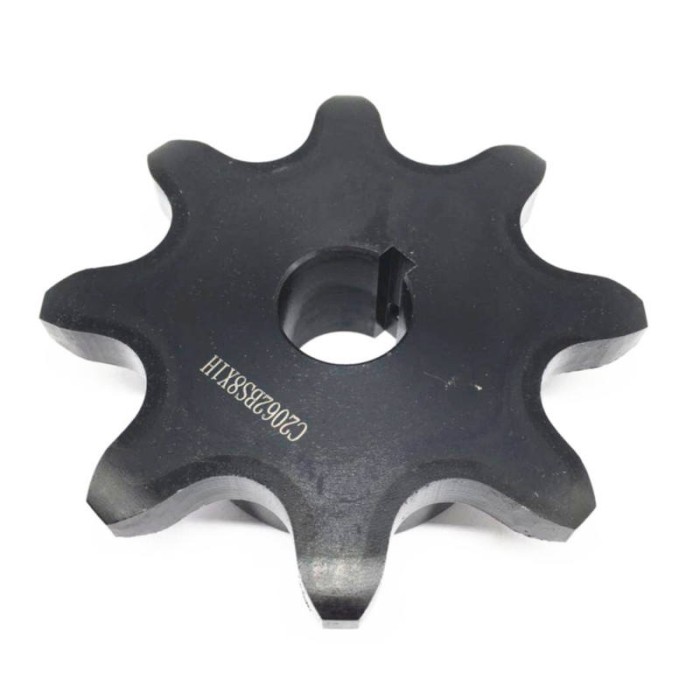

Steel Durable Double Pitch Sprocket 60B Chain Sprockets

Steel Durable Double Pitch Sprocket 60B Chain Sprockets
Steel Durable Double Pitch Sprocket 60B Chain SprocketsSteel Durable Double Pitch Sprocket 60B Chain Sprockets

Steel Durable Double Pitch Sprocket 60B Chain Sprockets

These double pitch chain sprockets can easily be bored to a metric or standard size to fit your application.
MaterialCarbon Steel
Number of teeth7-30
Surface TreatmentBlackening/Galvanizing/Phosphating
QualitySuperior ANSI Sprocket
Detail Information

About Double Pitch Chain Sprocket

The C2060 double-pitch chain sprocket is designed for use with C2060 double-pitch roller chains, which have twice the pitch length of standard roller chains. Double pitch sprockets typically have larger tooth spacing and are ideal for low-speed, light-to-moderate load applications such as conveyors, packaging machines, and agricultural equipment.


For a quotation or other information on C2060 sprockets, please contact us, and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
C2060 Chain Sprocket Dimension Chart

C2060 Double Pitch Chain Sprocket Size


Pitch
1 1/2"
Tooth width B1
0.459"
Sprocket Size  No.
Teeth
Outside Dia(De) Pitch Dia(Dp)TypeBore Dia(D1)  Hub Dia(Dm)LTB(A)Wt.Lbs.
(Approx.)
TypeNumberBore Dia(D1) Wt.
Lbs.
(Approx.)
MinMax
2060B1111 3.000 2.773  B  3/4 1      2 1/16★ 1 1/41.14
2060B1212 3.250 3.000  B  3/4 1  1/4 2 3/8★ 1 1/41.46
2060B1313 3.490 3.228  B  3/4 1  5/162  5/64 1 1/41.52
2060B1414 3.740 3.457  B  3/4 1  9/162 21/64 1 1/41.86
2060B1515 3.980 3.688  B  3/4 1  3/4 2 19/32 1 1/42.24
2060B1616 4.220 3.920  B  3/4 1 27/32 1 1/42.64
2060B1717 4.460 4.152  B  3/4 2  3/322  3/32 1 1/43.08
2060B1818 4.700 4.386  B  3/4 2  9/322 11/32 1 1/43.56
2060B1919 4.940 4.620  B  3/4 2 11/323  1/2  1 1/43.94
2060B2020 5.190 4.854  B  3/4 2  9/163  7/8  1 1/44.50
2060B2121 5.430 5.089  B  3/4 2  3/4 4       1 1/45.02
2060B2222 5.670 5.324  B  3/4 2  3/4 4       1 1/45.26
2060B2323 5.910 5.560  B  3/4 2  3/4 4       1 1/45.54
2060B2424 6.150 5.796  B  3/4 2  3/4 4       1 1/45.90 A2060A24 23/323.02
2060B2525 6.390 6.032  B  3/4 2  3/4 4       1 1/46.08 A2060A25 23/323.36
2060B2626 6.630 6.268  B  3/4 2  3/4 4       1 1/46.36 A2060A26 23/323.58
2060B2828 7.110 6.741  B  3/4 2  3/4 4       1 1/47.02 A2060A28 23/324.12
2060B3030 7.590 7.215  B  3/4 2  3/4 4       1 1/47.54 A2060A30 23/324.88
Has recessed groove in hub for chain clearance.
Maximum bores shown will accommodate standard keyseat and set screw over keyseat.
Slightly large bores are possible with no keyseat, shallow keyseat, or set screw at angle to the keyseat.
