Asian Standard sprocket Stock Bore Sprocket 35BS chain sprocket
Asian Standard sprocket Stock Bore Sprocket 35BS chain sprocket
These finished bore sprockets are shaft ready and come complete with keyways and setscrews.
| material | stainless steel |
|---|---|
| color | silver |
| product name | sprocket |
Detail Information
Roller Chain Sprocket - American Standard Series - 35BS roller chain sprocket dimensions
Ansi Roller Chain Sprockets Specifications
|
CHAIN SPROCKET
|
inch
|
ROLLER CHAIN
|
inch
|
|
Tooth Width B1
|
0.168"
|
Chain Pitch
|
3/8"
|
|
Hub Configuration
|
B
|
Roller Dia
|
0.200"
|
Tooth Width B2 | Chain Number | 35 | |
Tooth Width B3 | Number of Chain Rows | 1-2-3 | |
Number of Teeth | 9-112 | Asian Standard sprocket | |
Hardened Teeth | Up to customer | ||
Black Oxide | Up to customer | The keyway are on the center of the tooth | |
Bore Type | Bored to size | (2) Set Screws (1) Over Kw And (1) At 90° | |
Min bore size | 3/8 | Max bore size | 1 1/4 |
Product Information
YQ-CHINATRANSMISSIONS are able to provide high quality standard chain and sprocket,
include 35BS chain sprocket (3/8 inch chain sprocket).
Example:
sprocket 35 bs 10 1/4".
sprocket 35 bs 12 3/8".
sprocket 35 bs 72 1"
...
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
High quality:
√ Corrosion resistance
√ Durable, robust and reliable
√ Bad condition resistance
Adapted to：
* roller chains based on the requirements of ANSI 35BS
* all sprockets with pilot bore

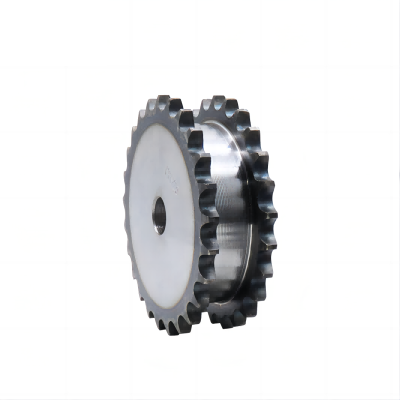

* available with type A platewheels,single strand roller chain sprockets,double roller chain sprockets,triple roller chain sprockets,four strand roller chain sprocket
* material used for chain sprocket carbon steel 1040, c45
* heat treatment and special surface treatments are available on request:
black oxide sprocket with teeth hard
YQ-CHINATRANSMISSION ansi transmission chains and sprockets are widely used in Agriculture,Printing,Chemical,Food and Beverage,General Machinery,Oil and Gas,Packaging and Logistics,Paper Industry,Textile industry,Woodeworking Machinery and so on.
The biggest characteristic is that the sprockets can be customized in different standard and materials according to your requirements. Made from the steel and the up-to-date skills as well as precision procedures, the high quality sprockets can withstand strong pressure and high temperature.
